Product Description:

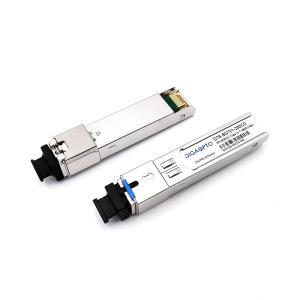

The GPON SFP transceiver is a high-performance SFP optical transceiver module designed for Gigabit Passive Optical Network (GPON) applications. It complies with SFP GPON B+ and SFP GPON B+ C+ standards. The transceiver provides a GPON interface with two transmit channels and two receive channels and an SC UPC connector. It is designed to operate over a wide temperature range of -40 to 85°C and a humidity range of 5% to 95%, providing reliable performance in a variety of environments. This module is ideally suited for GPON applications in various industries.
Features:
- Product Name: GPON SFP Transceiver
- Fiber Type: Single-mode
- Connector: SC UPC
- Interface Type: GPON
- Wavelength: 1490nm / 1310nm
- Power Supply: 3.3V
- SFP Module Transceiver
- SFP Optical Transceivers
- SFP Optical Transceivers
Technical Parameters:
| Name |
Parameter |
| Product Name |
GPON SFP Transceiver |
| Optical Components |
DFB |
| Power Supply |
3.3V |
| Application |
FTTH / FTTP / FTTA |
| Receiver Sensitivity |
-32dBm |
| Total Current |
450mA |
| Fiber Type |
Single-mode |
| Distance |
20Km |
| Humidity |
5%~95% |
| Storage Temperature |
-40-85C |
Applications:
The universal GTS-SGT21-20DCD GPON SFP transceiver is a single-mode optical module used to connect B+ optical fiber. It is equipped with SC UPC connector and the power supply is 3.3V. The transceiver is available in 1490nm and 1310nm wavelengths and is CE, FCC, RoHs, TUV and UL certified. The minimum order quantity for this product is 1 piece, and the price is negotiable. Packing is 10 pieces/pallet, 400 pieces/carton, delivery within 3-7 days after payment via T/T or L/C. We have the capacity to supply 100,000 pieces per month. This SFP GPON B+ transceiver module is ideal for data centers, FTTx and other communications applications.
Customization:
GPON SFP Transceiver
Product Description
Generic GTS-SGT21-20DCD GPON SFP Transceiver is a type of small form-factor pluggable transceiver used for both telecommunication and data communications applications. It is compliant with the SFP Multi-Source Agreement (MSA) and is suitable for use in GPON applications up to 20 km. The total current is 450mA and the power supply is 3.3V. It has SC UPC connector and is compliant with CE, FCC, RoHs, TUV, UL.
The minimum order quantity is 1. The price is negotiable. The packaging details are 10pcs/tray, 400pcs/carton. The delivery time is 3-7 days. The payment terms are T/T,L/C. The supply ability is 100,000 pieces/month.
Features
- SFP Optical Transceivers
- SFP Transceiver Modules
- GPON SFP Transceivers
- Total Current: 450mA
- Power Supply: 3.3V
- Distance: 20 Km
- Connector: SC UPC
- Compliant with CE, FCC, RoHs, TUV, UL
FAQ:
- Q: What is GPON SFP Transceiver?
- A: GPON SFP Transceiver is a type of optical transceiver used in fiber optic communication systems to transmit and receive digital signals.
- Q: What is the Brand Name and Model Number for GPON SFP Transceiver?
- A: The Brand Name is Generic and the Model Number is GTS-SGT21-20DCD.
- Q: What are the certifications for GPON SFP Transceiver?
- A: The certifications for GPON SFP Transceiver are CE, FCC, RoHs, TUV, UL.
- Q: What is the Minimum Order Quantity for GPON SFP Transceiver?
- A: The Minimum Order Quantity for GPON SFP Transceiver is 1.
- Q: Where is GPON SFP Transceiver manufactured?
- A: GPON SFP Transceiver is manufactured in Shenzhen, China.
