B+ GPON SFP 20km SMF SC For Dasan Zhone mxk-gpon-sfp-b+-rssi Transceiver
Description Of Dasan Zhone mxk-gpon-sfp-b+-rssi Compatible Transceiver
This Dasan Zhone mxk-gpon-sfp-b+-rssi compatible GPON OLT SFP is a high-performance transceiver module for single fiber communications using a 1490nm continuous-mode transmitter and a 1310nm burst-mode receiver. It is designed to meet ITU G.984.2 Class B+ requirements for optical line terminal (OLT) applications.
This Dasan Zhone compatible GPON SFP transceiver is programmed and tested in its intended application with identical functionality to the original Calix mxk-gpon-sfp-b+-rss transceiver but with a much lower price.
Specification Of Dasan Zhone mxk-gpon-sfp-b+-rssi Compatible Transceiver
| Compatible Brand | Dasan Zhone | P/N(Part No.) | mxk-gpon-sfp-b+-rssi |
| Application | GPON OLT Networks | Class | B+ |
| TX Data Rate | 2.488Gbps | RX Data Rate | 1.244Gbps |
| TX Wavelength | 1490nm | RX Wavelength | 1310nm |
| Transmitter Type | DFB Laser | Receiver Type | APD-TIA |
| TX Optical Power | +1.5~+5.0dBm | RX Sensitivity | < -28.0dBm |
| Extinction Ratio | >8.2dB | Receiver Overload | >-8dBm |
| Interface | SC UPC | Reach | 20km |
| DDM/DOM | With | Fiber Type | SMF |
| Power Consumption | <1.5W | Unit Weight | 25gram |
| Protocols | SFF-8472, ITUT-984.2 | Temperature | Commercial /Industrial |
Features Of Dasan Zhone mxk-gpon-sfp-b+-rssi Compatible Transceiver
- Functionally identical to Dasan Zhone mxk-gpon-sfp-b+-rssi
- Single fiber bi-directional data links asymmetric TX 2488Mbps/RX1244Mbps application
- 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
- Small Form Factor Pluggable package with SC/UPC Connector
- 0 to 70°C/-45 to 80°C operating temperature
- Single 3.3V power supply
- Digital diagnostic monitoring interface
- Digital burst RSSI function to monitor the input optical power level
- LVPECL compatible data input/output interface
- LVTTL transmitter disable control
- LVTTL transmitter laser fault alarm
- Fast LVTTL receiver Signal Detect (SD) indication response
- Low EMI and excellent ESD protection
- Class I laser safety standard IEC-60825 compliant
- RoHS6 Compliance
Application Of Dasan Zhone mxk-gpon-sfp-b+-rssi Compatible Transceiver
- Dasan Zhone GPON Network
- Dasan Zhone FTTx
Standards Of Dasan Zhone mxk-gpon-sfp-b+-rssi Compatible Transceiver
- MSA SFF-8074i
- ITU-T G.984.2 Amendment 1
- FCC 47 CFR Part 15, Class B
- SFF-8472
- TR-NWT-000870 4.1 ESD sensitivity classification Class2.
- Telcordia GR-468-CORE

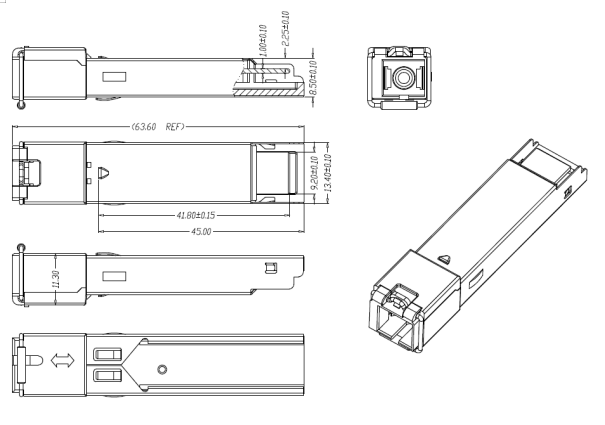

Package Outline Of Dasan Zhone mxk-gpon-sfp-b+-rssi Compatible Transceiver
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
FAQ
Q: Are you trading company or manufacturer?
We are original manufacturer. We can do OEM/ODM business. Our company mainly produces SFP Transceiver.
Q: What is your main products?
PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.
Q: Why choose GigaOpto?
1. Prompt delivery and remarkable services
2. Competitive selling prices
3. Rich experience in OEM & ODM co-operation
4. 100% new materials for production and 100% reliable quality
Q: How can you guarantee the quality of this Dasan Zhone mxk-gpon-sfp-b+-rssi Compatible Transceiver?
GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.
Q: What about the warranty?
3-year warranty for new products, and lifetime technical support.
Q: Can I have a sample order? What is your MOQ of this Dasan Zhone mxk-gpon-sfp-b+-rssi Compatible Transceiver?
Yes, a sample order is available for your testing and checking quality. Mixed samples are acceptable, our MOQ is just one piece.
Q: Could I use our own logo, label and package?
Yes, we can help you to market your own brand of 3rd party transceivers
OEM customization : Your LOGO (Labeling); Your P/N (Labeling);Your S/N (Labeling);
EEPROM information: Vendor name: customized your information; P/N: customized your information; S/N: customized your information.
Q: What are your payment terms for this Dasan Zhone mxk-gpon-sfp-b+-rssi Compatible Transceiver?
We accept T/T, Western Union, Paypal, L/C etc, For samples: 100% payment. Formal order: 30%as deposit, 70% balance payment before shipment. Gigaopto may be able to agree to more flexible terms with regular customers or customers with special large orders or products.
Q: How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
