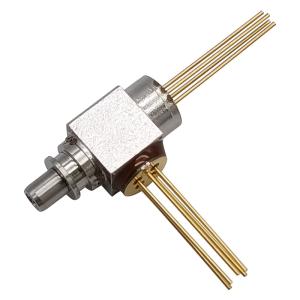

1.5G CATV WDM BOSA LC Receptacle SC ST FC APC Pigtail Fiber TX 1310nm RX 1550nm

Brand Name : GIGAOPTO

Model Number : BOSA-T1310FP-R1550PIN-1.5G-FCAPC-PIG

Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL

Place of Origin : Shenzhen, China

MOQ : 1 pcsc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 500,000pcs / month

Delivery Time : 1-5 working days

Packaging Details : 25pcs per Tray

Product Name : 1.5G CATV WDM BOSA

Wavelength : 1310nm_TX/1550nm_RX

Data Rate : 1.5G

Operating Temp.(℃) : 0 -75℃ / -20- 85℃

Output Power @25℃ : 1.1-2.99mW

Responsivity : 0.8A/W

Contact Now

1.5G CATV WDM BOSA LC receptacle SC ST FC APC Pigtail TX 1310nm RX 1550nm

Features:

  • Coaxial Package
  • InGaAsP/InP MQW-DFB Laser Diode
  • Low threshold, high slope efficiency and high output power
  • Data Rate up to 2.5G
  • Single-mode fiber pigtailed with SC FC ST or LC connector
  • High channel isolation
  • Low return loss
  • Optional with Isolator
  • Operating Case Temperature: -20℃ to +85℃
  • RoHS Compliant Products Available

Applications:

  • Long distance digital transmission system
  • Cable television system
  • WDM systems

Absolute Maximum Ratings

Parameter Symbol Ratings Unit
Storage Temperature Tstg -40~+85 ℃
Operating Case Temperature Top -20~+85 ℃
Reverse Voltage (Monitor PD) VRD 20 V
Photodiode Forward Current (Monitor PD) IFD 2 mA
Lead Soldering (Temperature)/(Time) --- 260/10 ℃/Sec
Reverse Voltage (Analog PD) Vrpd 30 V
Forward Current (Analog PD) Ifpd 10 mA

Note1: Exceeding any one of these values may destroy the device immediately

Electrical and Optical Characteristics – Transmitter

(If=Ith+20mA, Pf=1mW, SMF (9.5/125µm), Tc=+25+/-2°C, unless otherwise noted.)

Parameter Symbol Condition Min. Typ. Max. Unit
Threshold Current Ith at Tc=25±3℃ --- 10 15 mA
Output Power (After coupled) Pf CW, Iop=Ith+20mA 1.0 --- 2.99 mW
Slope Efficiency Se CW, Average 0.05 --- 0.15 mW/mA
Operating Voltage Vop CW, Iop=Ith+20mA --- 1.1 1.6 V
Peak Wavelength λc

CW, Iop=Ith+20mA,

Tc= -20~85°C

 1290 1310 1330 nm
Side Mode Suppression Ratio SMSR

CW, Iop=Ith+20mA,

Tc= -20~85°C

 35 40 --- dB
Monitor Current Imon CW, Iop=Ith+20mA 0.1 --- 1.0 mA
Monitor Dark Current Id VRD=5V --- --- 0.1 μA
Relative intensity Noise --- --- --- --- -145 dB/Hz
Optical Isolation Iso --- 30 --- --- dB
Tracking Error TE APC,-20℃~+85℃ -1.5 --- 1.5 dB
Rise/Fall Time Tr/Tf Ib=Ith, 20~80% --- 0.1 0.15 ns

Electrical / Optical Specifications – Receiver

Parameter Symbol Test Condition Min. Typ. Max. Unit
Operating Wavelength*Note2 λ --- 1500 1550 1600 nm
Active Area Φ --- --- 75 --- μm
-3dBm Bandwidth BW VR = 5V 2 --- --- GHz
Dark Current Id VR = 5V --- --- 1.0 nA
Responsivity R λ=1550nm --- 0.80 --- A/W

Note: Receiver Operating Wavelength can be customized.

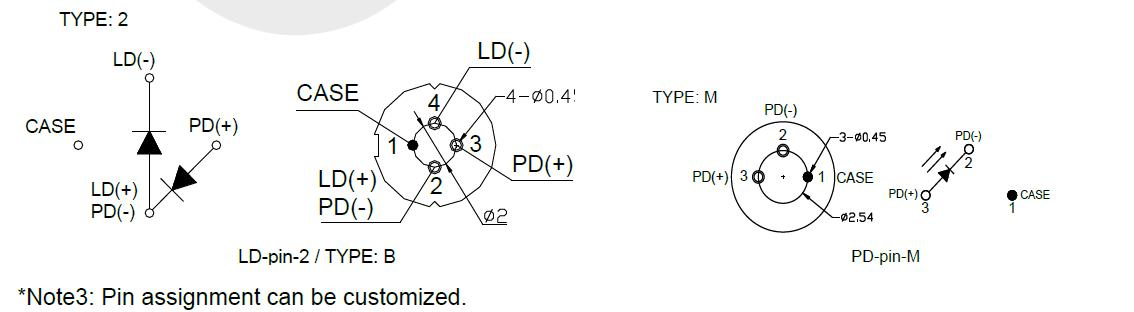

Pin Assignment

1.5G CATV WDM BOSA LC Receptacle SC ST FC APC Pigtail Fiber TX 1310nm RX 1550nm

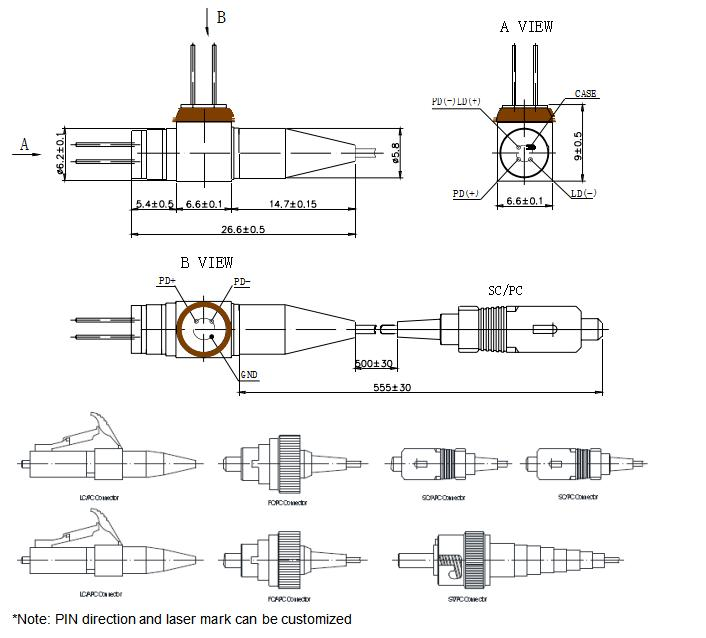

Package Dimension

1.5G CATV WDM BOSA LC Receptacle SC ST FC APC Pigtail Fiber TX 1310nm RX 1550nm
