SD HD 3G SDI Video SFP Transceiver BIDI LC TX1310nm RX1550nm 40km Transceiver Module MSA

Brand Name : Gigaopto

Model Number : GTS-B3530-40DC

Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL

Place of Origin : Shenzhen, China

MOQ : 1

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 50,000pcs/month

Delivery Time : 1-5 work days

Packaging Details : Static bag, Plastic bag, Retail box or by required

Product Name : SD/HD/3G SDI Bi-Directional SFP Transceiver

Data Rate : 3Gb/s

Wavelength : TX1310nm/RX1550nm

Components : DFB + PIN

Interface : LC

Reach : 40km for 3G-SDI

Warranty : 3-year

OEM/ODM : Supported

Keywords : SD/HD/3G SFP BiDi Transceiver Module

Contact Now

SD/HD/3G SDI Video SFP BIDI LC TX1310nm RX1550nm 40km Transceiver Module MSA

Functional Specification

Product Name 3G SDI Bi-Directional SFP Part Number GTS-B3530-40DC
Data Rate 2.97Gb/s MSA/Non-MSA Pinout MSA
Module-Type Transceiver Operating Temp. 0°C to 70°C
Wavelength TX1310nm/RX1550nm Max Optical Distance 40km
Connector LC Simplex UPC Cable Type SMF
Transmitter Type DFB BiDi Receiver Type PIN
Power Supply Voltage 3.3V Total Current (Max) 450mA
TX Optical Power -2~ +3dBm Rx Sensitivity (3G-SDI) < -18dB (PBRS)2
Rx Sensitivity (HD-SDI) < -21dB (PBRS)2
Rx Sensitivity (SD-SDI) < -22dB (PBRS)2
Extinction Ratio >5.0dB Overload > 0dBm
Pathological Patterns Support DDM Yes
OEM/ODM Supported Warranty 3-year
Application Serial Digital Interface (SDI) standard
SMPTE 297-2006 compatible electrical-optical interface
Remote digital display or security surveillance systems
Professional video broadcast
Digital cinema system

Description

Gigaopto’s GTS-B3530-40DC is 1 fiber BiDi SFP optical transceiver module designed to transmit and receive optical serial digital signals as defined in SMPTE 297-2006.

The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and supports SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rate,a maximum distance of 40 km is achievable with 3Gbps pathological signals over a single-mode fiber (SMF) with simplex LC connector

It is with a 1310nm DFB laser transmitter. The receiver section uses an integrated 1550nm detector preamplifier mounted in an optical header and a limiting post-amplifier IC.

The transceiver is compliant with SFP Multi-Source Agreement (MSA), It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C.

Note:This bi-directional unit must be used with another transceiver (our GTS-B5330-40DC ) or network equipment of complementary wavelengths.

Features

  • SD/HD/3G-SDI SFP Transceiver
  • SMPTE 297-2006 Compatible
  • Hot-Pluggable SFP
  • Bandwidth from 50Mb/s to 2.97Gb/s
  • Optical Link up to 40km for 3G-SDI
  • Support Video Pathological Patterns for SD-SDI, HD-SDI and 3G-SDI
  • 1310nm-TX DFB Transmitter and 1550nm-RX PIN photo-detector
  • Hot-pluggable SFP footprint
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic functions available through the I2C interface
  • +3.3V single power supply
  • Low Power Consumption
  • Commercial operating case temperature range: 0℃ to 70℃
  • RoHS compliant and Lead-Free

Application

  • 3G-SDI/HD-SDI/SD-SDI Electrical-Optical Converter
  • 3G-SDI/HD-SDI/SD-SDI Optical-Electrical Converter
  • HD Camera or Monitor System
  • High-density digital video routers & switches

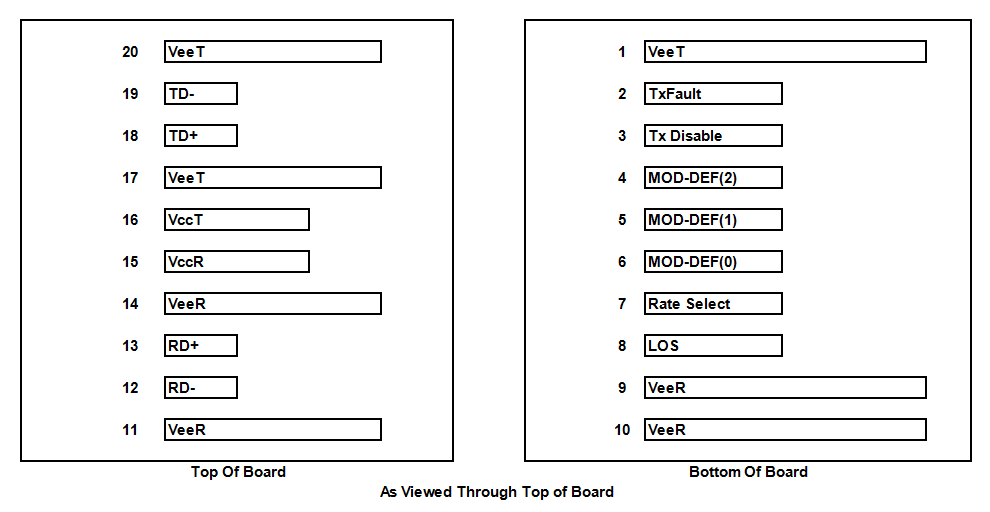

PIN Definition
